Informação detalhada

Absorção de água:	≤0,2%	Resistência à umidade:	Bom
Absorção de som:	0,9-1,0 NRC	Condutividade térmica:	0,035 w/mk
Estabilidade dimensional:	≤1%	Força de compressão:	≥40 kPa
Resistência à tracção:	≥7 kPa	Força de flexão:	≥14 kPa
Resistência química:	Bom	Material:	Lã mineral
Densidade:	40-200 kg/m3	Resistência ao fogo:	Classe A1
Temperatura de serviço:	-50℃ a 650℃	Estabilidade térmica:	≥ 1000°C
Destacar:	Kraft-based vapor barrier FSK , FSK facing wall insulation , Floor insulation vapor barrier

Descrição de produto

Product Introduction Of the FSK FACING

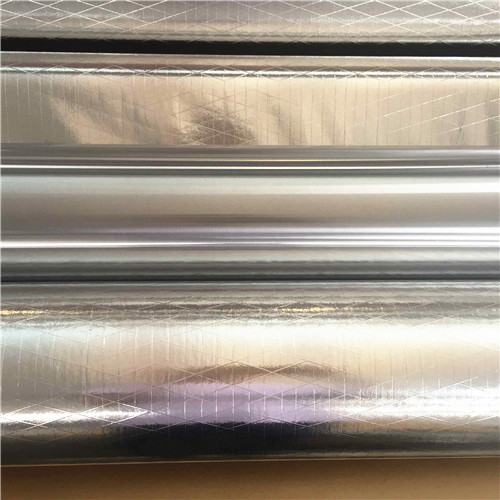

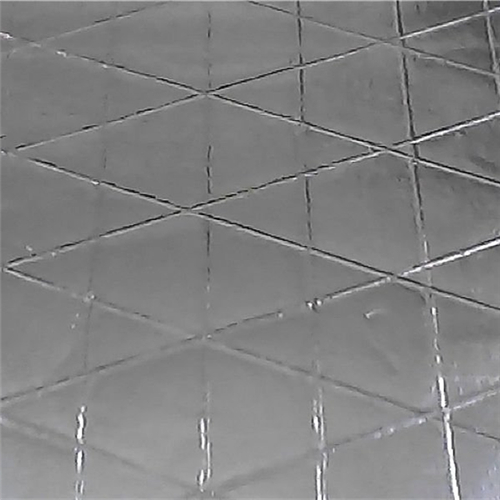

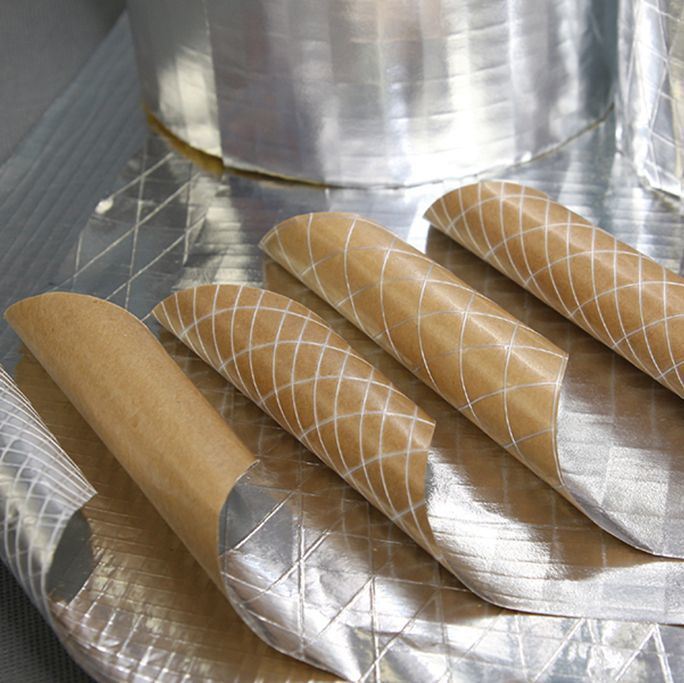

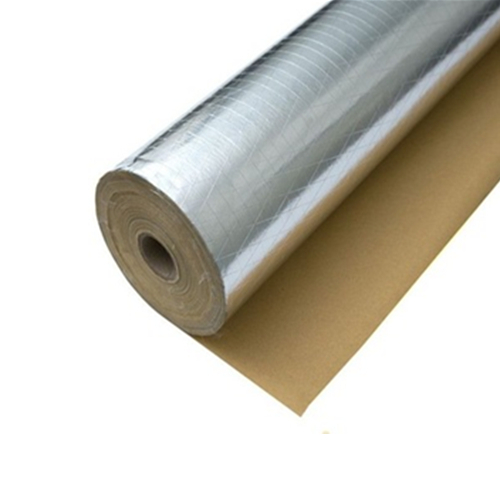

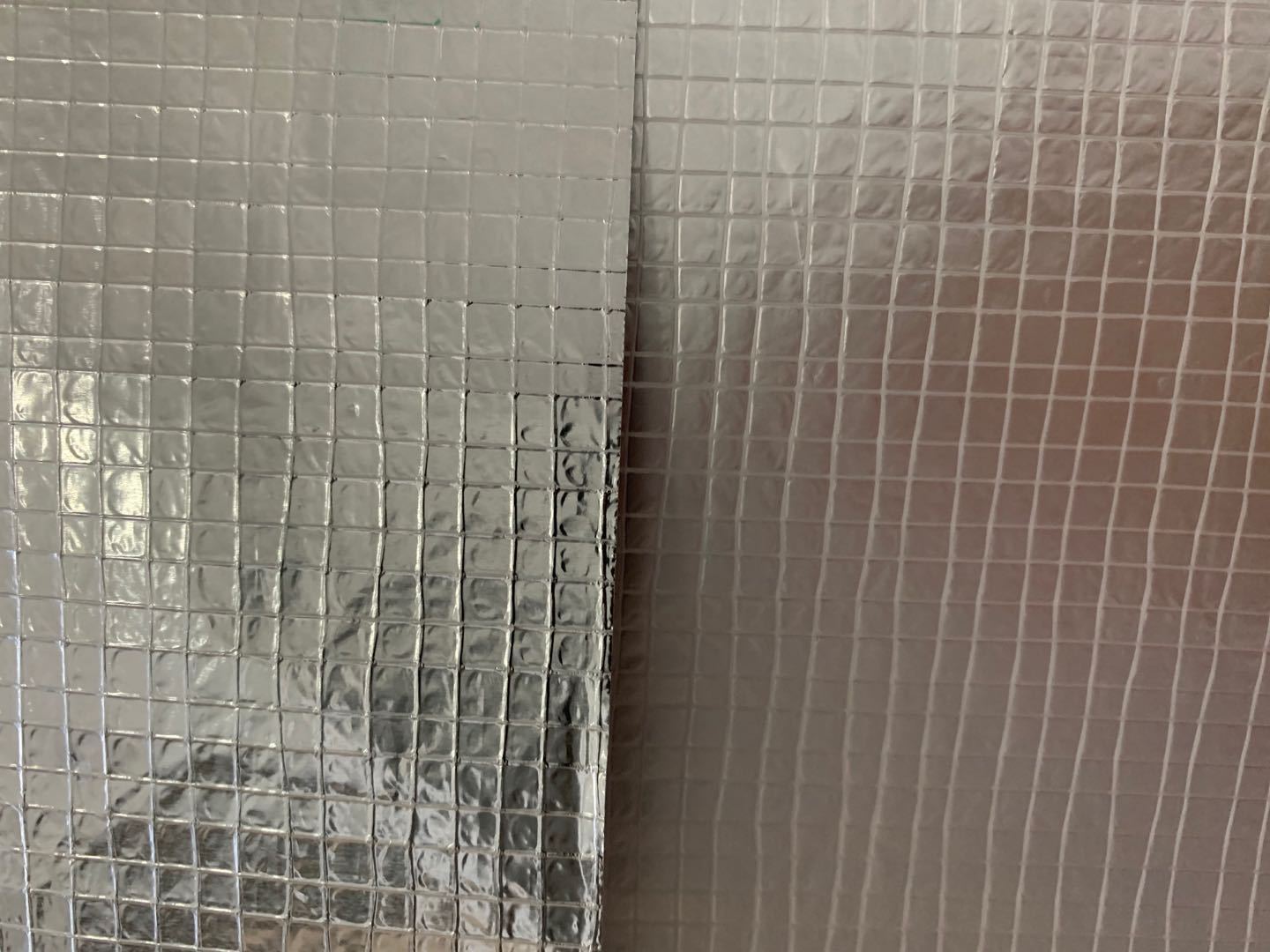

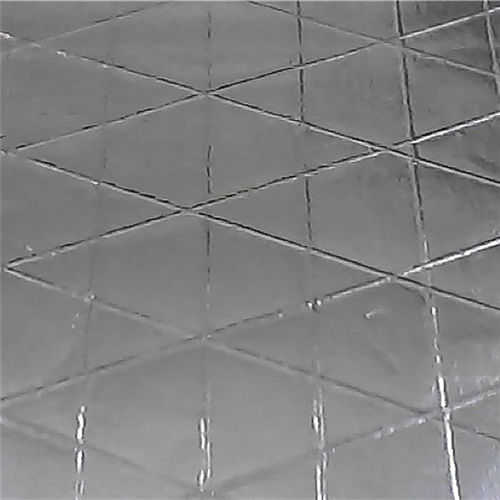

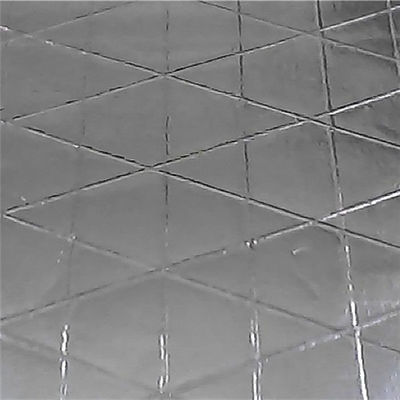

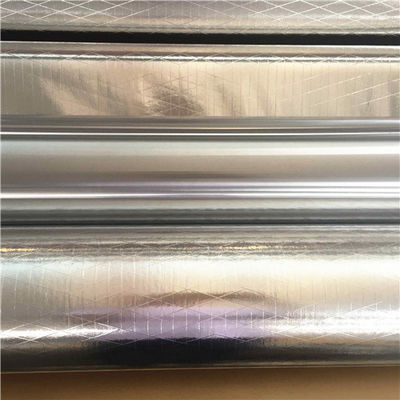

This FSK Facing variant is designed for use in walls and floors as a vapor barrier and insulation facing. Made with reinforced kraft paper and fiberglass scrim, it provides superior tensile strength and burst resistance. It is commonly used in combination with mineral wool or fiberglass batts to enhance insulation performance and prevent moisture buildup.

Product Details Of The FSK FACING

Product Parameter Of The FSK FACING

Product	Construction
FS - 750	Foil: 7 micron / Polyethylene / 50 gsm Kraft paper
FS - 760	Foil: 7 micron / Polyethylene / 60 gsm Kraft paper
FSK-7160A	Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper
FSK- R7160A	Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK-7160B	Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK-R7160B	Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK - 7180A	Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper
FSK - 7180B	Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper
FSK -73B	Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK -R73B	Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper

TYPICAL PHYSICAL PROPERTIES

Product	Basic weight (g/m²)	Tensile MD (n/25mm)	Tensile XD (n/25mm)	Bursting Strength(n)	WVTR (ng/N.s)	Reflectivity of Foil Surface	Temperature Resistance (℃)	Fire Rating
FS - 750	80	95	50	20	5.75	95%	-29~ +66	-----
FS - 760	85	105	50	20	5.75	95%	-29~ +66	-----
FSK - 7160A	96	125	50	30	5.75	95%	-29~ +66	-----
FSK - R7160A	98	130	50	30	5.75	95%	-29~ +66	Class 1
FSK - 7160B	98	132	65	30	5.75	95%	-29~ +66	-----
FSK - R7160B	100	136	65	30	5.75	95%	-29~ +66	Class 1
FSK - 7180A	115	150	75	40	5.75	95%	-29~ +66	-----
FSK - 7180B	95	150	80	40	5.75	95%	-29~ +66	-----

Product Feature And Application Of The FSK FACING

Kraft paper standard weight is 50 gsm and 60 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m,2500m
Inner core: 76mm
Mainly used as vapor barriers with various insulation materials, also applied for duct wrap in HVAC system, and suitable for in-line lamination of glass wool, rock wool, mineral wool.

Packing & Shipping

FAQ

Q: What are the benefits of your FSK facing?

A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.

Q: Can I get some samples for testing before placing order?

A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.

Q: Can you make other sizes and packages for this product?

A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
