Casa > Produtos> Coberturas de lã de vidro> Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap

Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap

Informação Básica

Lugar de origem:	CHINA
Marca:	fanryn
Certificação:	ASTM E84
Número do modelo:	Glasswool de vidro

Quantidade de ordem mínima:	1*40HQ
Preço:	0.1-6$
Detalhes da embalagem:	Sacola plástica de vaacuum+saco
Tempo de entrega:	7-10 dias
Termos de pagamento:	T/T.
Habilidade da fonte:	10000 metros quadrados

Melhor preço contacto

Informação detalhada

Resistência ao fogo:	CLASSE A	Resistência à umidade:	Alto
Grossura:	25mm - 200mm	Resistência Química:	Alto
Condutividade térmica:	0,031-0.042 W/MK	Densidade:	10-48 kg/m3
Ecológico:	Sim	Material:	WOOL GLASS
Absorção de som:	Alto	Tipo de isolamento:	Isolamento Térmico
Durabilidade:	Alto	Aplicativo:	Telhados, paredes, pisos
Destacar:	aluminum foil fiberglass insulation roll , thermal acoustic blanket for HVAC , pipe wrap glass wool blanket

Descrição de produto

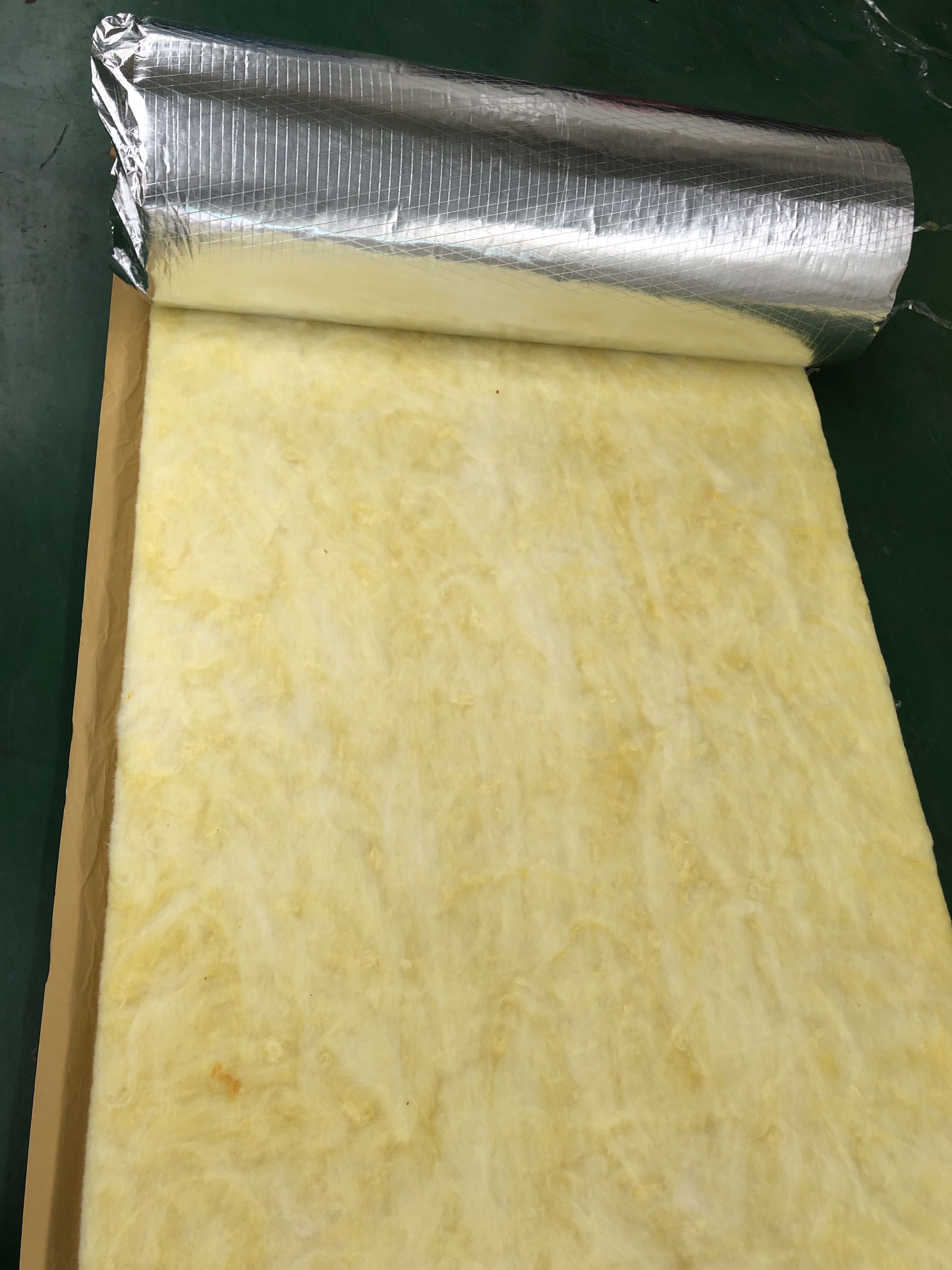

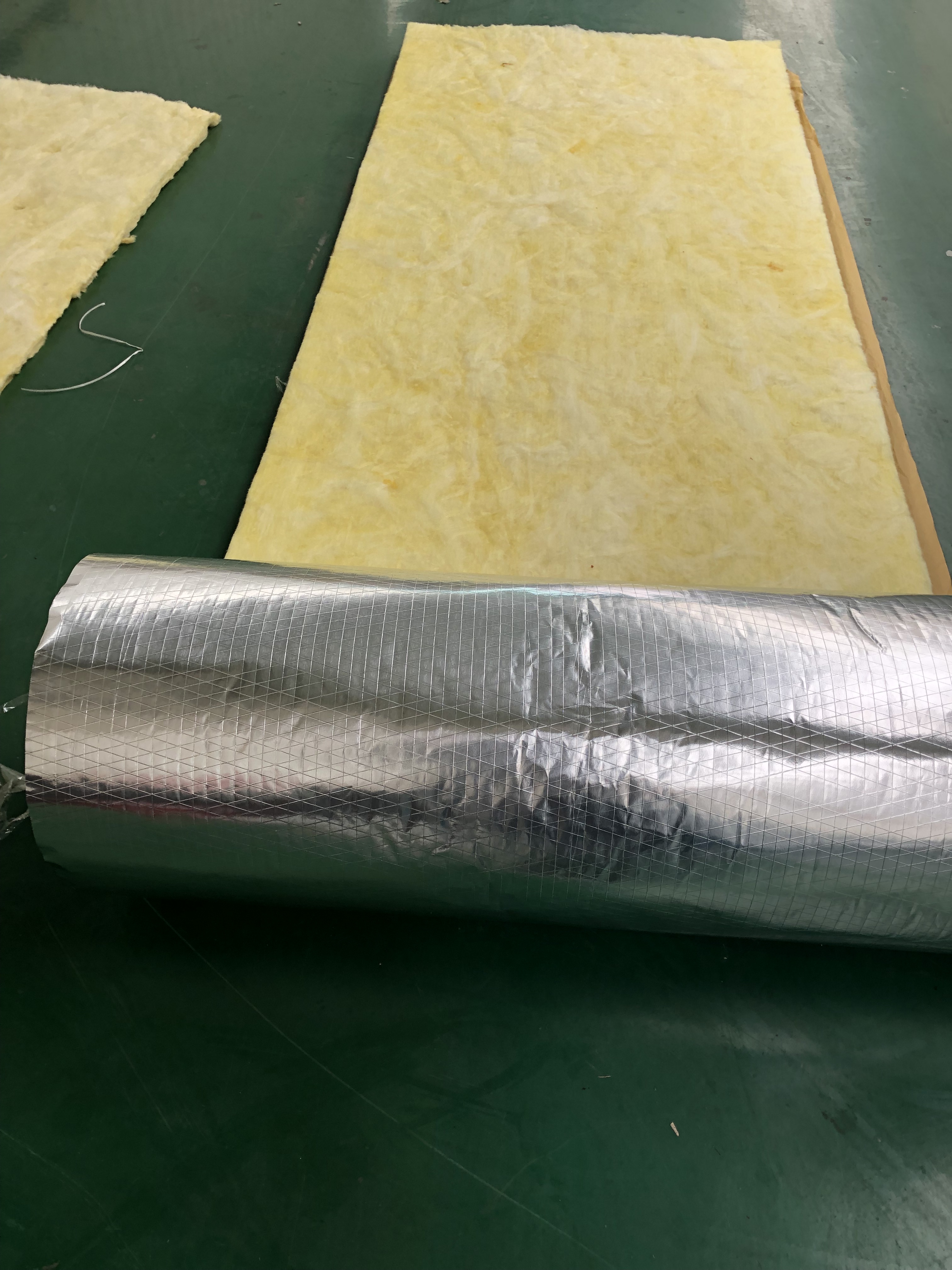

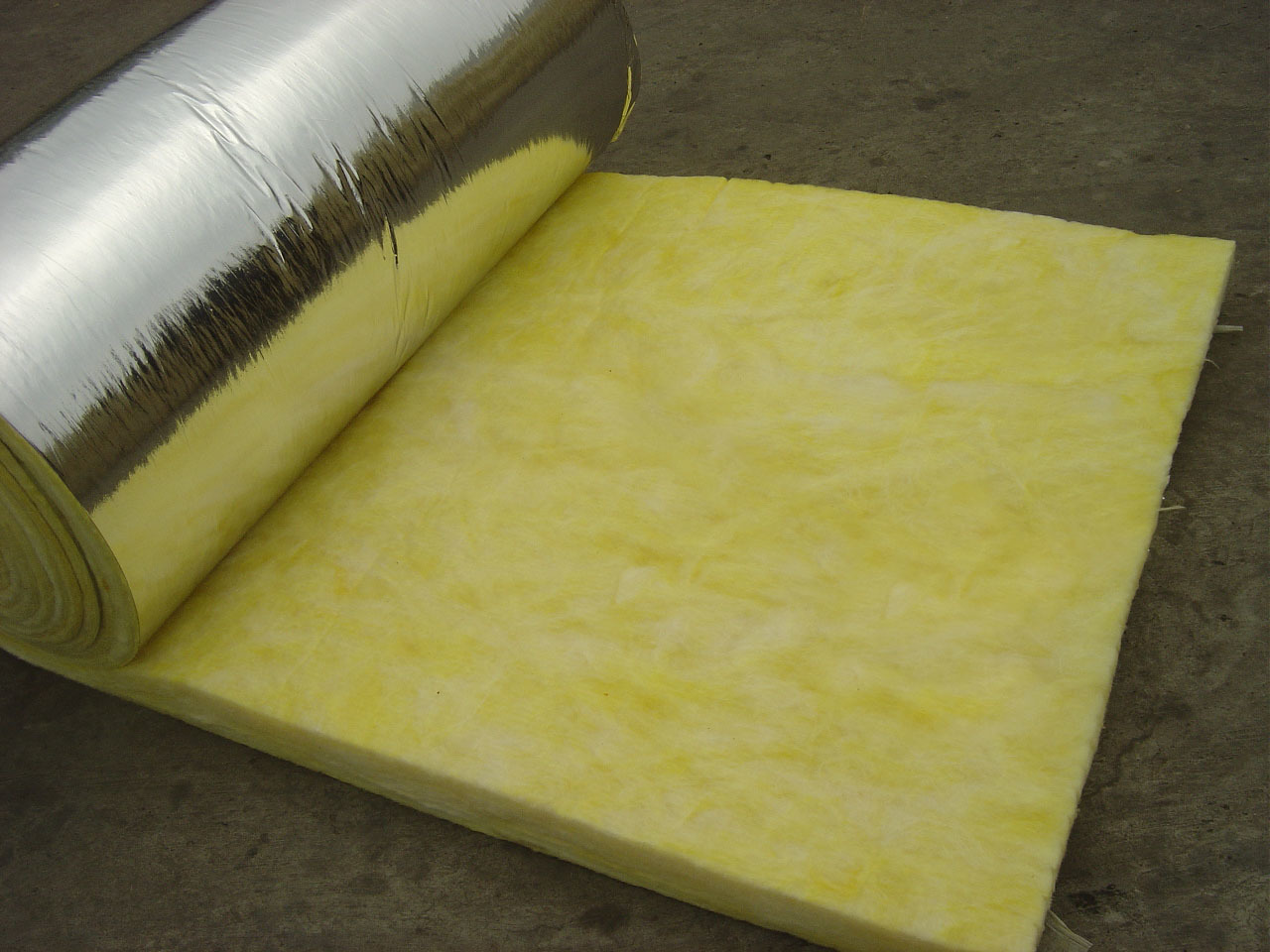

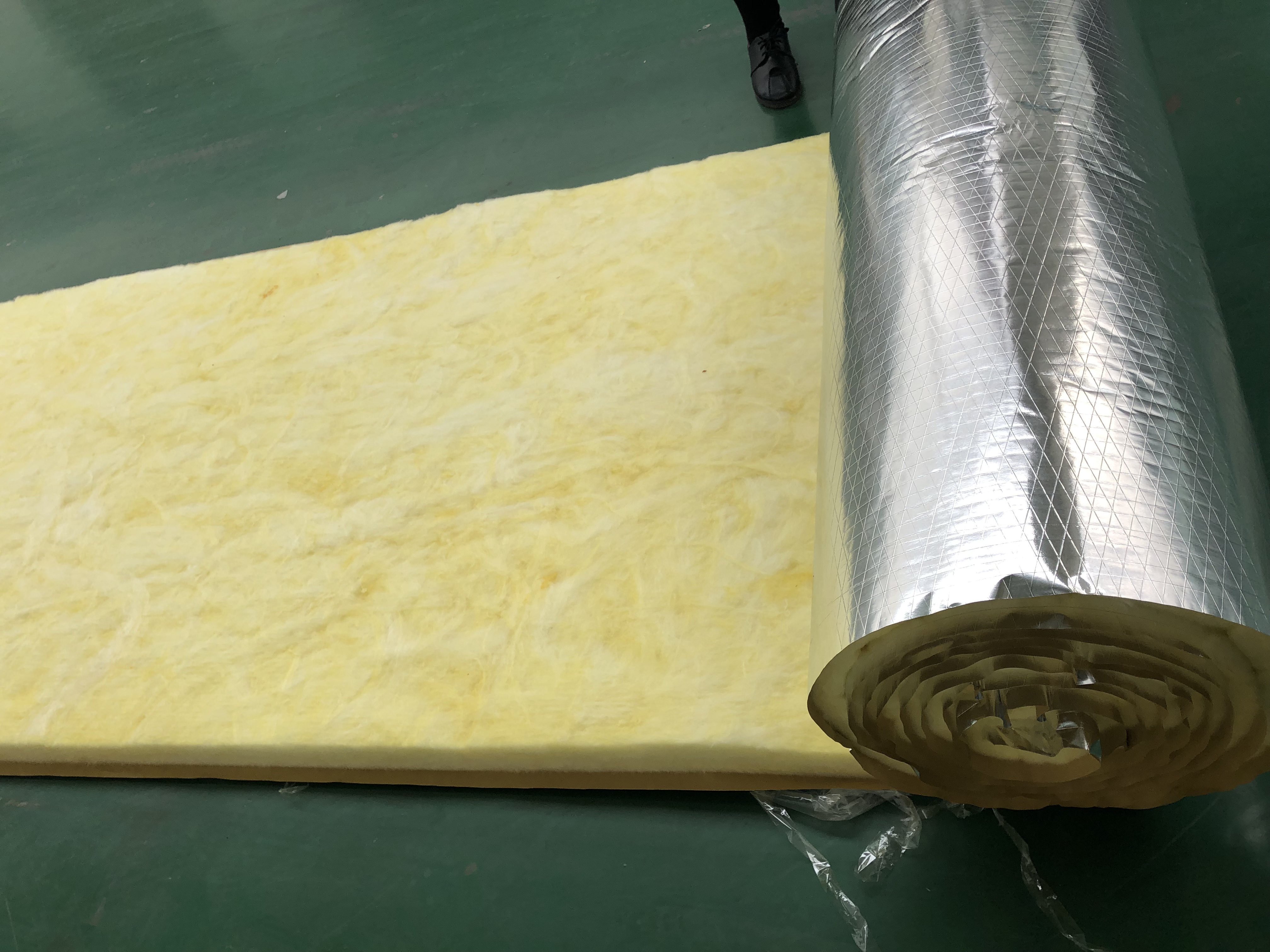

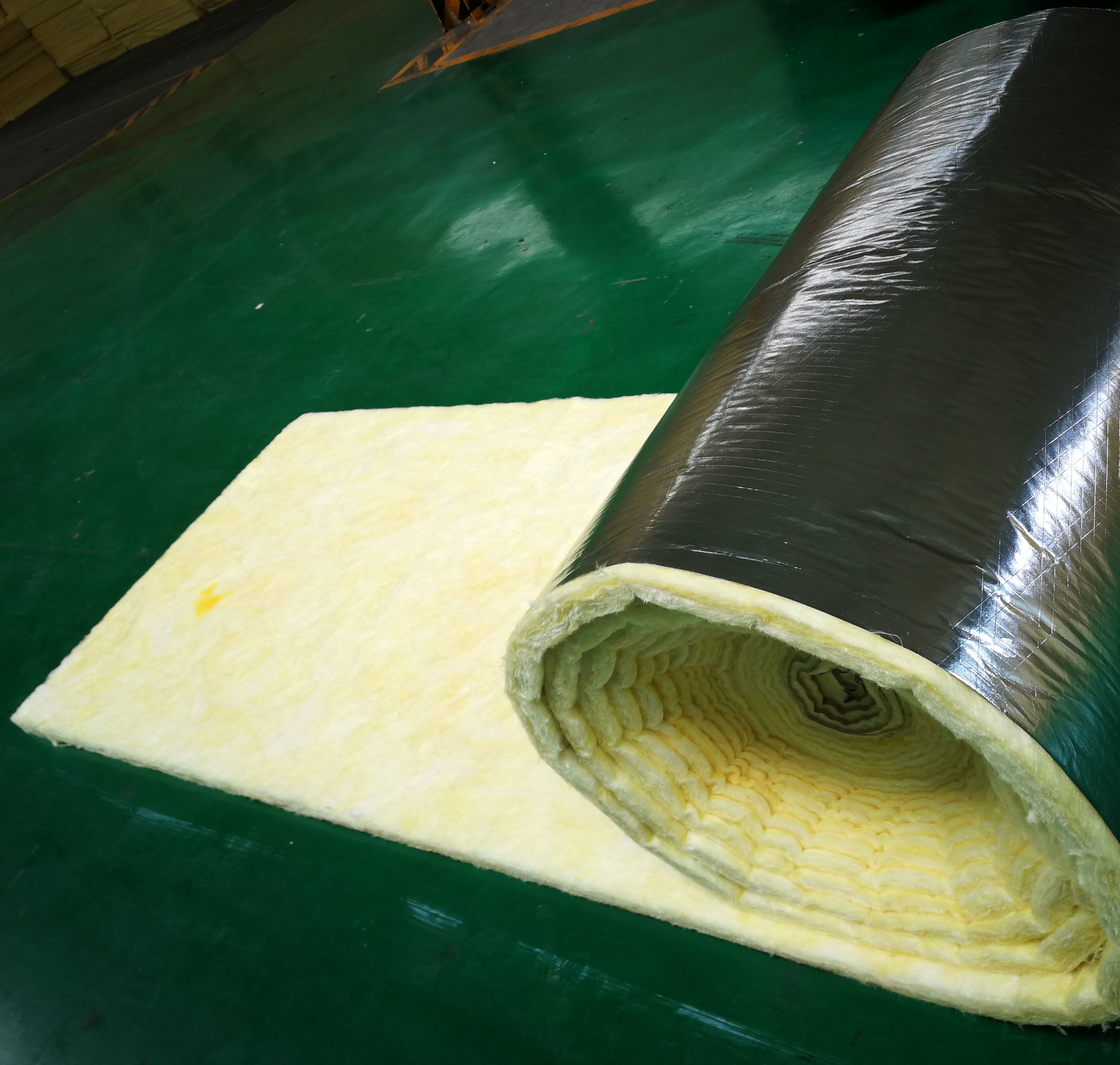

Aluminum Foil Faced Fiberglass Insulation Roll

Thermal Acoustic Blanket for HVAC and Pipe Wrap

FANRYN centrifugal glass wool blanket insulation is engineered for large-area installation. In addition to excellent thermal insulation properties, it also offers effective shock absorption and acoustic isolation, particularly for mid-to-low frequency noise, helping to reduce sound transmission and improve the working environment. The product is available with an optional aluminum foil facing, which enhances moisture resistance, corrosion protection, and thermal reflectivity, thereby increasing overall durability and energy efficiency. It is ideal for applications where hygiene or high humidity conditions are a concern.

Product Specifications

Density (kg/m³)	Thickness (m)	Length (m)	Width (m)	Rolls/Packing
10-48	0.025-0.2	5-30	0.6	2 rolls
10-48	0.025-0.2	5-30	1.1	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.15	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.2	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.25	1 roll \| 2 rolls overlapping

Technical Data

Item	Unit	Index	Standard
Density	kg/m³	10-48	GB/T 5480.3
Average fiber diameter	μm	5-8	GB/T 5480.4
Water content	%	≤ 1	GB/T 16400-2003
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Reshrinking temperature	℃	250-400	GB/T 11835-2007
Thermal conductivity	w/m·k	0.034-0.06	GB/T 10294
Hydrophobicity	%	≥ 98	GB/T 10299
Moisture rate	%	≤ 5	GB/T 5480.7

Main Applications

Wall Insulation: Used as thermal insulation layer for building exterior or interior walls, effectively reducing heat loss and improving energy efficiency.
Steel Structure Insulation: Ideal for insulating steel roofs and walls, providing both thermal and acoustic benefits while resisting moisture and corrosion.
Indoor Partition Walls: Enhances acoustic and thermal performance of interior walls, creating quieter and more comfortable living or working spaces.
Train Compartments: Provides lightweight thermal and acoustic insulation in railway vehicles, contributing to passenger comfort and energy savings.
Sound Absorption and Acoustical Isolation: Widely used in studios, cinemas, and machinery rooms to reduce noise transmission and improve acoustic environments.
HVAC Duct Insulation: Wraps around ventilation ducts to prevent heat loss/gain and control condensation while reducing system noise.

Quality Standards

According to GB STANDARDS, EN13162, EN13172, ISO9001:2000

Product Advantages

Excellent Resilience: Rapidly recovers to original thickness within 24 hours after opening vacuum-sealed packaging, ensuring consistent performance and ease of installation.
Uniform Thickness and Color: Outstanding consistency in both thickness and color, providing a neat and professional appearance for various applications.
Superior Dimensional Stability: Excellent shape retention capabilities maintain structural integrity over time, even under changing environmental conditions.
Reduced Fiber Irritation: Composed of soft, long glass fibers with advanced bonding technology, significantly minimizing fiber shedding and flying debris during handling and installation.

Product Details
