products

High quality Wall or roof thermal Insulation glass wool blanket

Informação Básica
Place of Origin: China
Marca: fanryn
Certificação: GB/T 17794-2008
Model Number: glasswool
Minimum Order Quantity: 1*40HQ
Preço: 1-10$
Packaging Details: vacuum bag+woven bag
Delivery Time: 7-10 days
Payment Terms: T/T
Supply Ability: We can finish the production of 1*40HQ in about 7-10 days
Informação detalhada
Densidade: 10-48kg/m3 Tipo: Outros materiais de isolamento térmico, cobertor, lã de vidro
Cor: Geralmente é amarelo, mas outras cores também podem ser personalizadas Grossura: 25mm-200mm
Comprimento: 5-30m Aplicação: Compartimento de trem
Material: WOOL GLASS Largura: 0,6-1,2m
Nome do produto: Clanta de lã de vidro de parede de alta qualidade ou teto de parede ou telhado Grau de combustibilidade: Grau A1 não combustível, grau A não combustível
Recurso: Não inflamável, à prova d'água, isolamento de calor, prova de umidade, isolamento/impermeabiliza Condutividade térmica: 0,031-0.042W/MK
Pacote: saco plástico a vácuo+saco de tecido Função: Prova de água, preservação térmica
Tamanho: 1200*600*50mm, 1200*600*100mm (47,2*23,7*3,94 pol.) Hidrofobicidade: ≥98,2%
Destacar:

wall thermal insulation glass wool

,

roof insulation glass wool blanket

,

thermal insulation mineral wool blanket


Descrição de produto

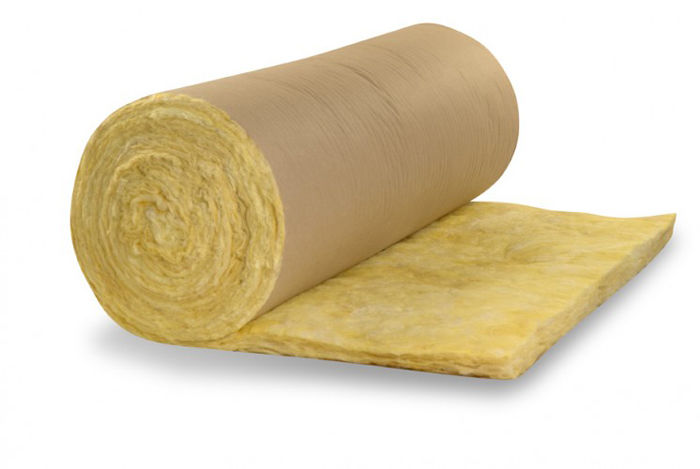

Product Introduction Of The Glass Wool Blanket Insulation

FANRYN centrifugal glass wool blanket Insulation are made for large laying area. Beside the character of thermal insulation, it also has the performances of shock absorption and acoustical isolation,especially for middle or low frequency sound, which can cancel the noise and improve working environment.

High quality Wall or roof thermal Insulation glass wool blanket 0High quality Wall or roof thermal Insulation glass wool blanket 1


Product Parameter Of The Glass Wool Blanket Insulation

Technical Data

Item

Unit

Index

Standard

Density

kg/m3

10-48

GB/T 5480.3

Average fiber dia

μm

5.5

GB/T 5480.4-1985

Water content

%

≤ 1

GB/T 3007-1982

Grade of combustibility



Non-combustible Grade A

GB 8624-1997

Preshrinking temp

≥250

GB/T 11835-1998

Thermal conductibility

w/m·k

0.031-0.042

GB/T 10294-1988

Hydrophobicity

%

≥ 98.2

GB/T 10299-1988

Moisture rate

%

≤ 5

GB/T 16401-1986

Sound absorption coefficient



1.03 product reverberation method 24kg/m3    2000HZ

GBJ 47-83

Slag inclusion content

%

≤ 0.3



Product Size Of The Glass Wool Blanket Insulation

Density(kg/m3)

Thickness(m)

Length (m)

Width (m)

Rolls/packing

10-48

0.025-0.2

5-30

0.6

2 rolls

10-48

0.025-0.2

5-30

1.1

1 roll

2 rolls overlapping

10-48

0.025-0.2

5-30

1.15

1 roll

2 rolls overlapping

10-48

0.025-0.2

5-30

1.2

1 roll

2 rolls overlapping

10-48

0.025-0.2

5-30

1.25

1 roll

2 rolls overlapping


Product Feature And Application Of The Glass Wool Blanket Insulation

1.Wall Insulation – Enhances thermal efficiency in residential and commercial buildings, reducing heating/cooling costs.

2.Steel Structure Insulation – Provides effective thermal protection for warehouses, factories, and prefabricated buildings.

3.Indoor Partition Walls – Improves soundproofing between rooms in offices, hotels, and apartments.

4.Train & Vehicle Compartments – Ensures temperature stability and noise reduction in railway carriages, buses, and RVs.

5.Acoustic Panels & Ceilings – Used in theaters, studios, and industrial facilities for superior noise control.

6.HVAC & Duct Insulation – Prevents heat loss and condensation in ventilation system

High quality Wall or roof thermal Insulation glass wool blanket 2High quality Wall or roof thermal Insulation glass wool blanket 3High quality Wall or roof thermal Insulation glass wool blanket 4

High quality Wall or roof thermal Insulation glass wool blanket 5High quality Wall or roof thermal Insulation glass wool blanket 6High quality Wall or roof thermal Insulation glass wool blanket 7

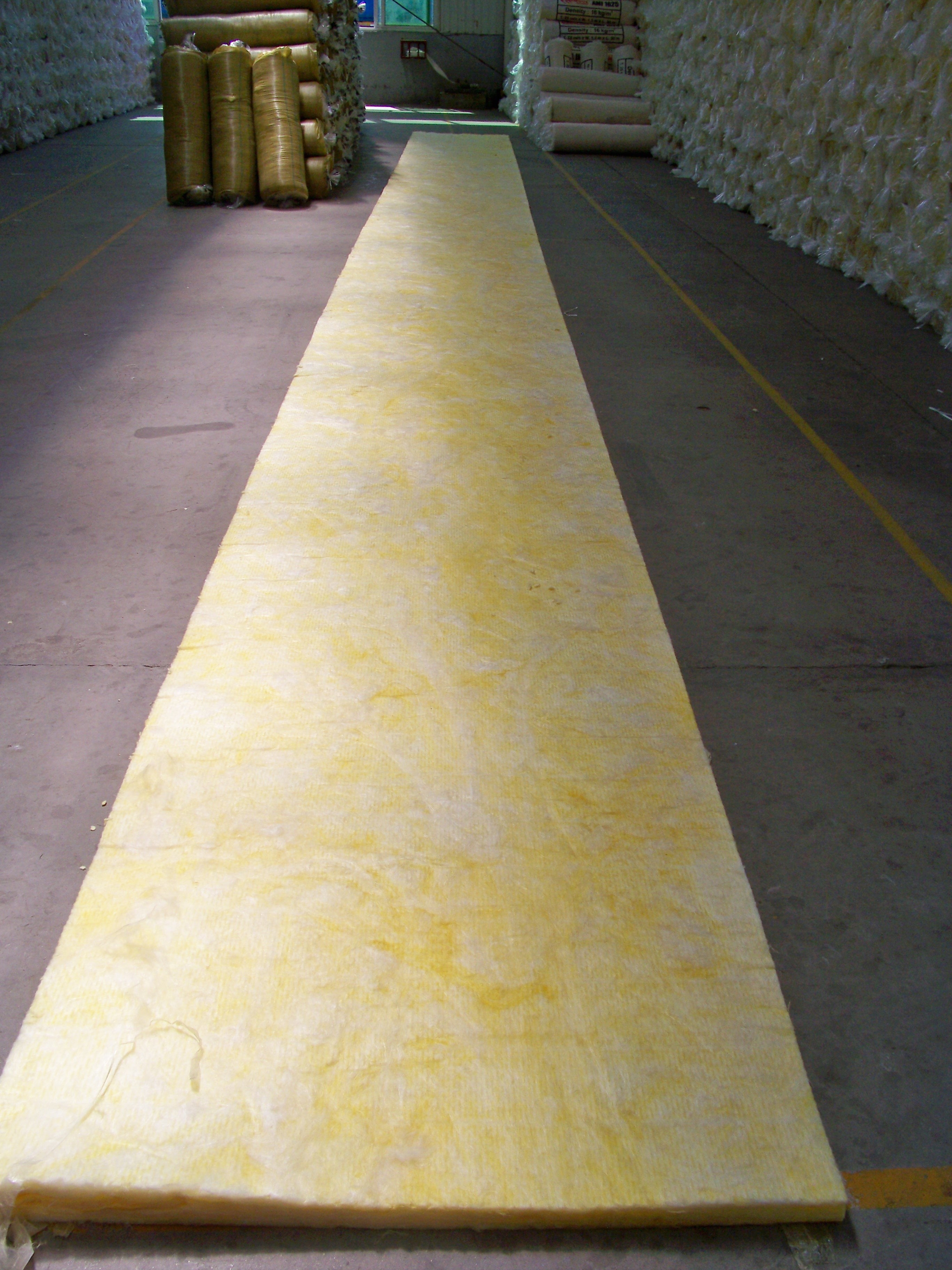

Production Details Of The Glass Wool Blanket Insulation

 High quality Wall or roof thermal Insulation glass wool blanket 8High quality Wall or roof thermal Insulation glass wool blanket 9High quality Wall or roof thermal Insulation glass wool blanket 10

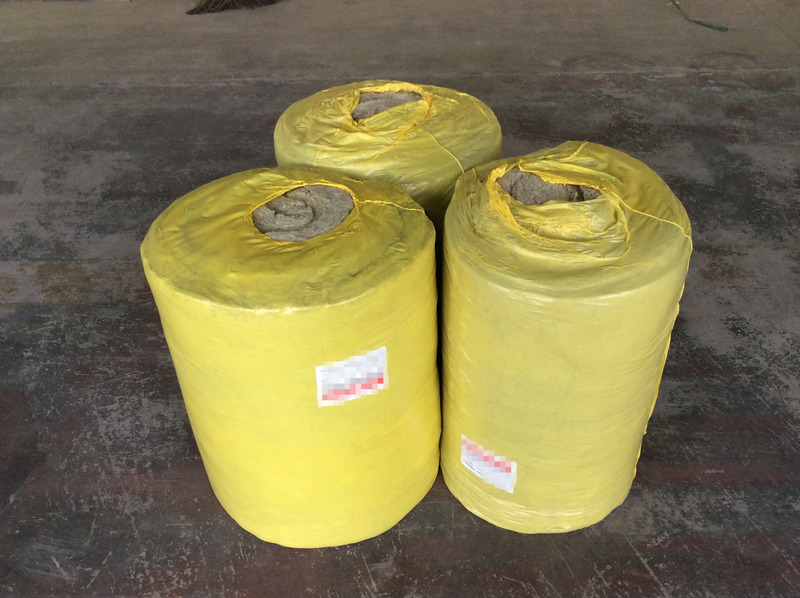

Product Packing Of The Glass Wool Blanket Insulation

1.Vacuum plastic bag+woven bag

2.Vacuum plastic bag+PE bag

3.Vacuum plastic bag+PE shrinking bag

4.PE shrinking bag

High quality Wall or roof thermal Insulation glass wool blanket 11High quality Wall or roof thermal Insulation glass wool blanket 12High quality Wall or roof thermal Insulation glass wool blanket 13

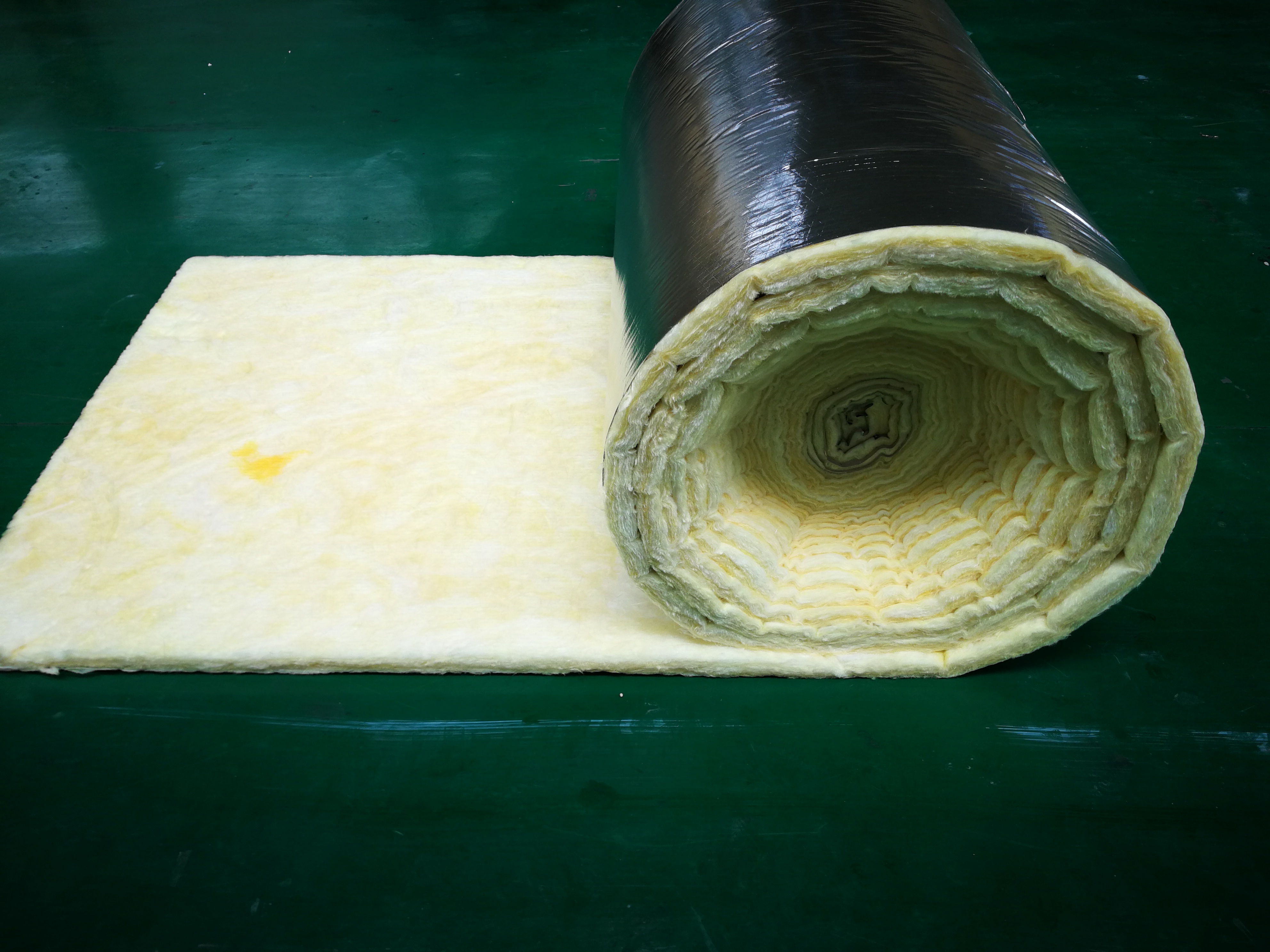

Production Facing Of The Glass Wool Blanket Insulation

1.Foil-Scrim-Kraft Facing

2.Alum Glass Cloth Facing

3.Fiberglass Tissue

High quality Wall or roof thermal Insulation glass wool blanket 14High quality Wall or roof thermal Insulation glass wool blanket 15High quality Wall or roof thermal Insulation glass wool blanket 16


FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process



Q2: How to pack exported goods?

A2: Vacuum plastic bag + woven bag(Standard Export Packing).



Q3: what is your lead time for one 40HC container order?

A3: Usual 7-10 work days after placing order



Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
