Informação detalhada

Densidade:	40 - 200 kg/m³	Aplicativos:	Isolamento de edifícios, isolamento industrial, sistemas HVAC
Condutividade Térmica:	0,035 - 0,045 W/m·K	Absorção de Água:	baixo
Grossura:	20 mm a 100 mm	Método de instalação:	Fixação mecânica ou adesivo
Resistência à Compressão:	≥ 10kPa	Material:	Lã mineral
Coeficiente de absorção de som:	0,7 - 1,0	cor:	Normalmente marrom ou amarelado
Resistência ao fogo:	Não combustível, Classe A1	Impacto Ambiental:	Reciclável e ecológico
Resistência à temperatura:	Até 1000 ° C.	Dimensões:	Personalizável (por exemplo, placas de 600x1200 mm)
Destacar:	aluminum foil glass wool blanket , thermal insulation mineral wool blanket , acoustic barrier glass wool blanket

Descrição de produto

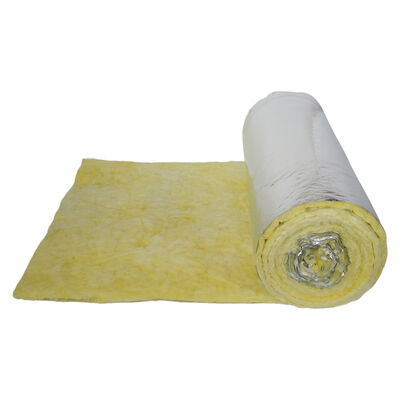

Advanced Aluminum Foil-Faced Glass Wool Blanket – Superior Thermal & Acoustic Barrier

Product Overview:

Our Aluminum Foil-Faced Glass Wool Blanket combines high-performance centrifugal glass wool with a durable Foil-Scrim-Kraft (FSK) facing. This triple-layer facing includes aluminum foil for radiant heat reflection, a reinforcing scrim for strength, and a kraft paper backing for added stability. The result is an insulation product that excels in thermal efficiency, moisture resistance, and acoustic control.

Product parameter of the glass wool blanket

Item	Unit	Index	Standard
Bulk density	kg/m³	10-48	GB/T 5480.3-1985
Average fiber dia.	µm	5.5	GB/T 5480.4-1985
Water content	%	≤1	GB/T 3007-1982
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Preshrinking temp	℃	≥250	GB/T 11835-1998
Thermal conductibility	w/m.k	0.031-0.043	GB/T 10294-1988
Hydrophobicity	%	≥98.2	GB/T 10299-1988
Moisture rate	%	≤5	GB/T 16401-1986
Sound absorption coefficient		1.03 product reverberation method 24kg/m³2000HZ	GBJ 47-83
Slag inclusion content	%	≤0.3

Density(kg/m3)	Thickness(m)	Thermal conductibility(W/m.k)	Thermal resisitance(m2.K/W)
10	0.05	0.043	1.163
10	0.1	0.043	2.326
12	0.05	0.042	1.190
12	0.1	0.042	2.381
14	0.05	0.041	1.220
14	0.1	0.041	2.439
16	0.05	0.039	1.282
16	0.1	0.039	2.564
20	0.025	0.038	0.658
20	0.05	0.038	1.316
24	0.025	0.036	0.694
24	0.05	0.036	1.389
32	0.025	0.034	0.735
32	0.05	0.034	1.471
48	0.025	0.033	0.758
48	0.05	0.033	1.515

Product size of the glass wool blanket

Density(kg/m3)	Thickness(m)	Length (m)	Width (m)	Rolls/packing
10-48	0.025-0.2	5-30	0.6	2 rolls
10-48	0.025-0.2	5-30	1.1	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.15	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.2	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.25	1 roll	2 rolls overlapping

Key Features & Benefits:

Enhanced Thermal Insulation: Aluminum foil reflects up to 97% of radiant heat, significantly improving energy efficiency.
Excellent Vapor Barrier: FSK facing prevents moisture penetration, protecting structures from mold and condensation.
Superior Sound Absorption: Effectively reduces mid to low-frequency noise, ideal for mechanical rooms and studios.
Fire-Safe & Non-Toxic: Class A fire rating (non-combustible) and low VOC emissions ensure safe indoor use.
Easy Installation: Lightweight, flexible, and can be easily cut to fit complex shapes without specialized tools.

Packaging & Lead Time:

Standard Export Packing: Vacuum-sealed plastic bag + woven bag
OEM Packaging Available
Lead Time: 10–15 working days for one 40HC container

etiqueta:

Lugar de origem:	China
Marca:	FANRYN

Quantidade de ordem mínima:	1 40HC
Detalhes da embalagem:	Saco plástico
Tempo de entrega:	15 dias úteis
Termos de pagamento:	T/T
