Informação detalhada

Impacto ambiental:	Reciclável e ecológico	Absorção de Água:	<1%
Dimensões:	Varia (por exemplo, placas de 600x1200 mm)	resistência à compressão:	≥10 kPa
Coeficiente de absorção de som:	0,85	Resistência à temperatura:	-268°C a 700°C
Método de instalação:	Fixação mecânica ou ligação por adesivo	Densidade:	40-200 kg/m³
Material:	Lã mineral	Grossura:	20 a 100 mm
Resistência ao fogo:	Não combustível, Classe A1	Condutividade Térmica:	0,035 W/m·K
Aplicações:	Isolamento de edifícios, equipamentos industriais, sistemas HVAC	Permeabilidade do vapor:	Alto
Destacar:	fiberglass ceiling board sound absorption , soundproof fiberglass ceiling tile , quiet space fiberglass ceiling panel

Descrição de produto

FANRYN Fiberglass Ceiling Board – Superior Sound Absorption for Quiet Spaces

FANRYN Fiberglass Ceiling Board is engineered from high-density fiberglass wool, offering exceptional sound absorption and noise reduction. With its decorative fiberglass tissue face and reinforced back tissue, this ceiling board ensures a clean, professional finish while significantly improving acoustic comfort in any environment.

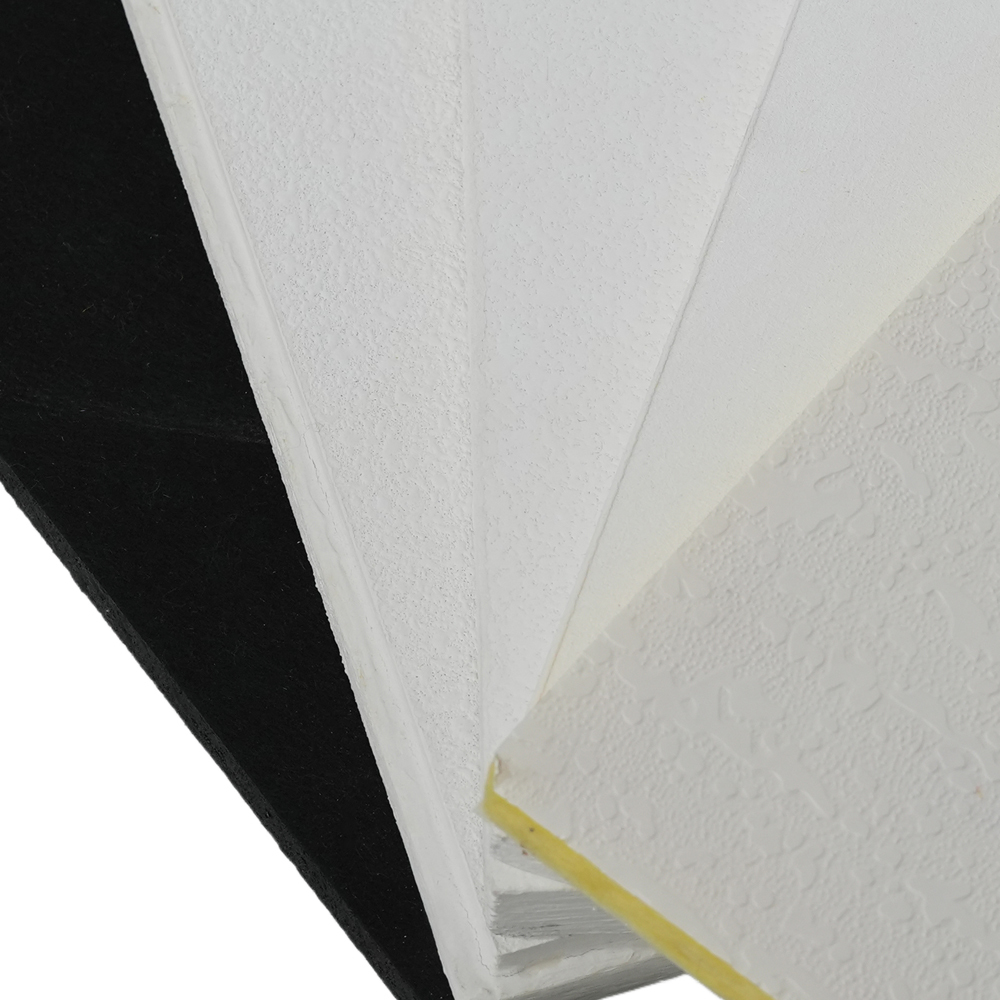

FANRYN Fiberglass Ceiling Board – Superior Sound Absorption for Quiet Spaces 0

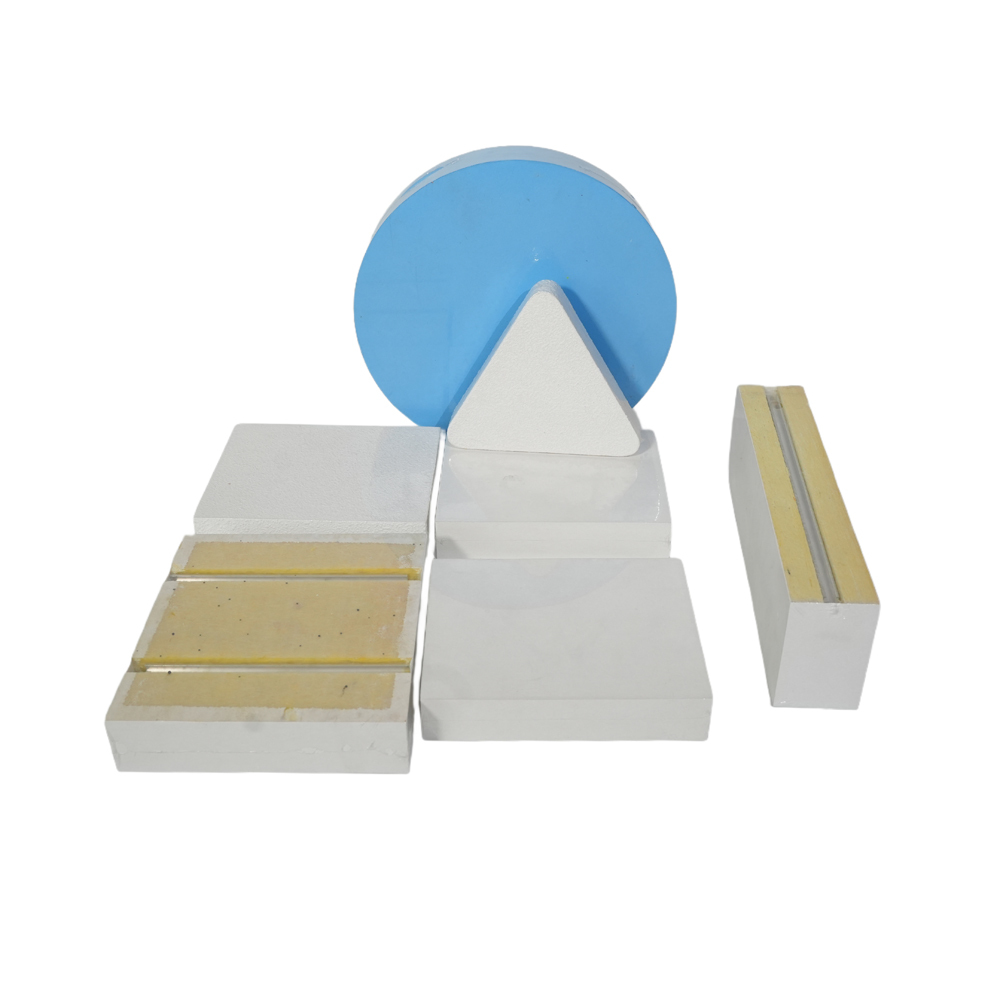

FANRYN Fiberglass Ceiling Board – Superior Sound Absorption for Quiet Spaces 1

Technical Data

Material	Fiberglass wool board
Density	90-130kg/m3
Face	Painting laminated with decorative fiberglass tissue or PVC facing
Color	White, black and others to order
Fire-resistant	Class A
Thermal-resistant	≥0.5 (m2·k/w)
NRC	0.9-1.0
Humidity	Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating
Moisture rate	≤1%(JC/T670-2005)
Environmental impact	Tiles and packing are fully recyclable
safety	Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3

Key Features

Noise Reduction Coefficient (NRC): 0.9–1.0, providing outstanding sound absorption.
Fire Resistance: Class A rating for enhanced safety.
Moisture Resistance: Dimensionally stable even at 95% relative humidity and 40°C.
Eco-Friendly: Fully recyclable materials and packaging.

Applications

Ideal for classrooms, offices, libraries, and conference rooms where noise control is critical.

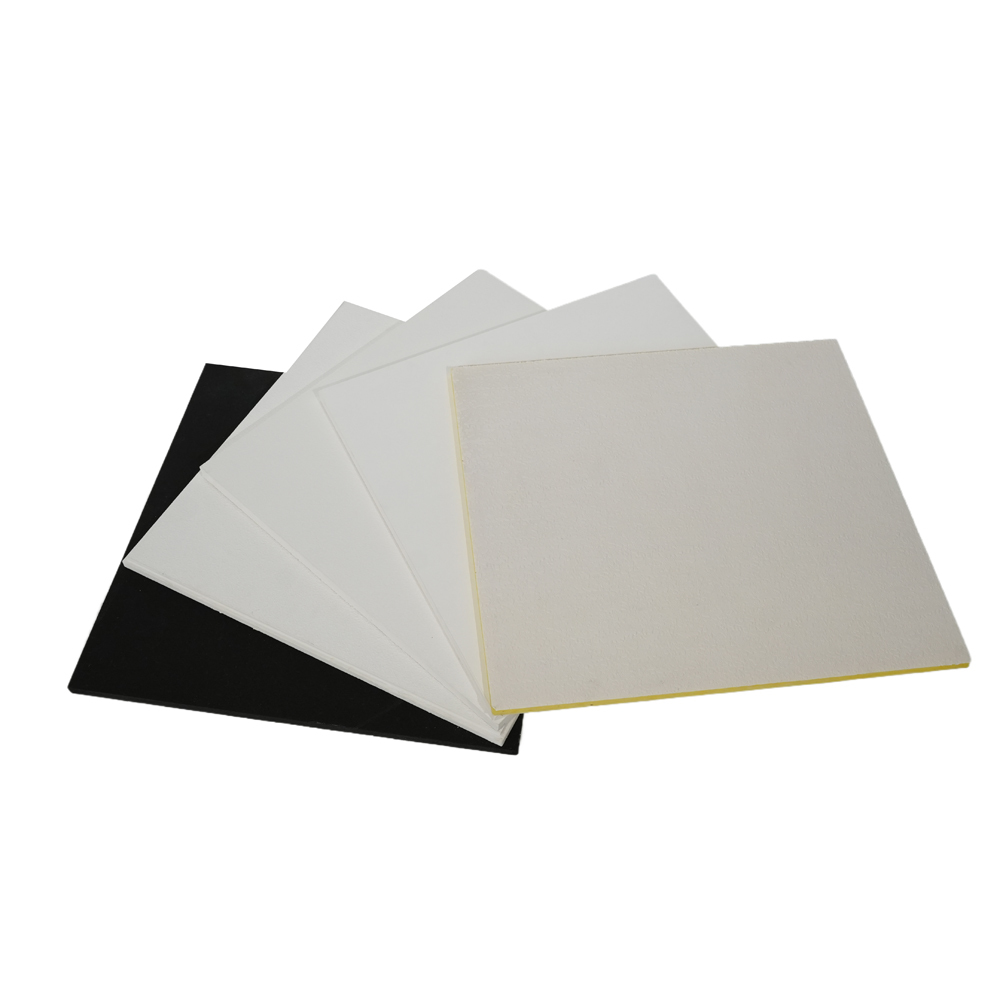

FANRYN Fiberglass Ceiling Board – Superior Sound Absorption for Quiet Spaces 2

Packing and Loading Quantity for Containers:

SIZE	CARTON/40HQ	PIECES/CARTON	M2/40HQ
*60060015MM*	532	20	3830.4
*600120015MM*	266	20	3830.4
*60060020MM*	532	15	2872.8
*600120020MM*	266	15	2872.8
*60060025MM*	532	12	2298.24
*600120025MM*	266	12	2298.24

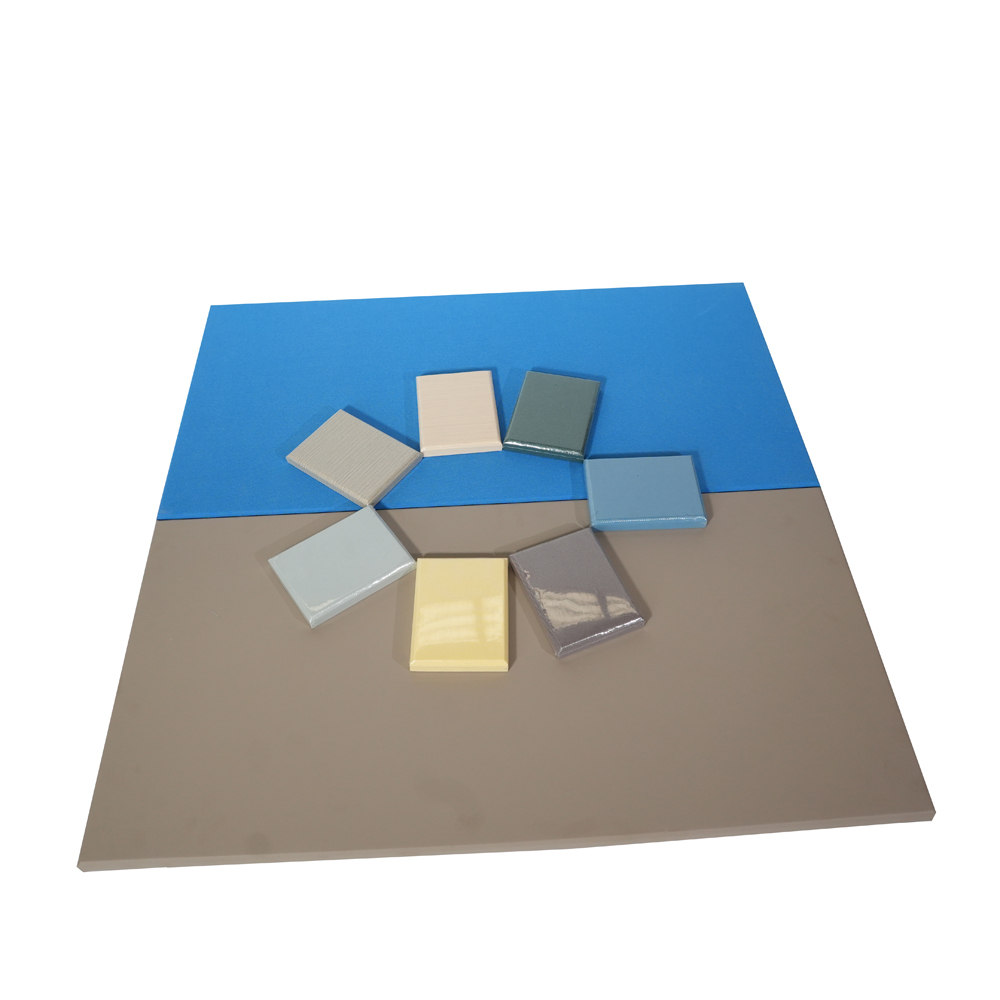

FANRYN Fiberglass Ceiling Board – Superior Sound Absorption for Quiet Spaces 3

Installation:

use exposed grids, grids width:15mm or 24mm
tiles are easy to trim and install
both inches and centimeters grids are available

Facing on glass wool board:

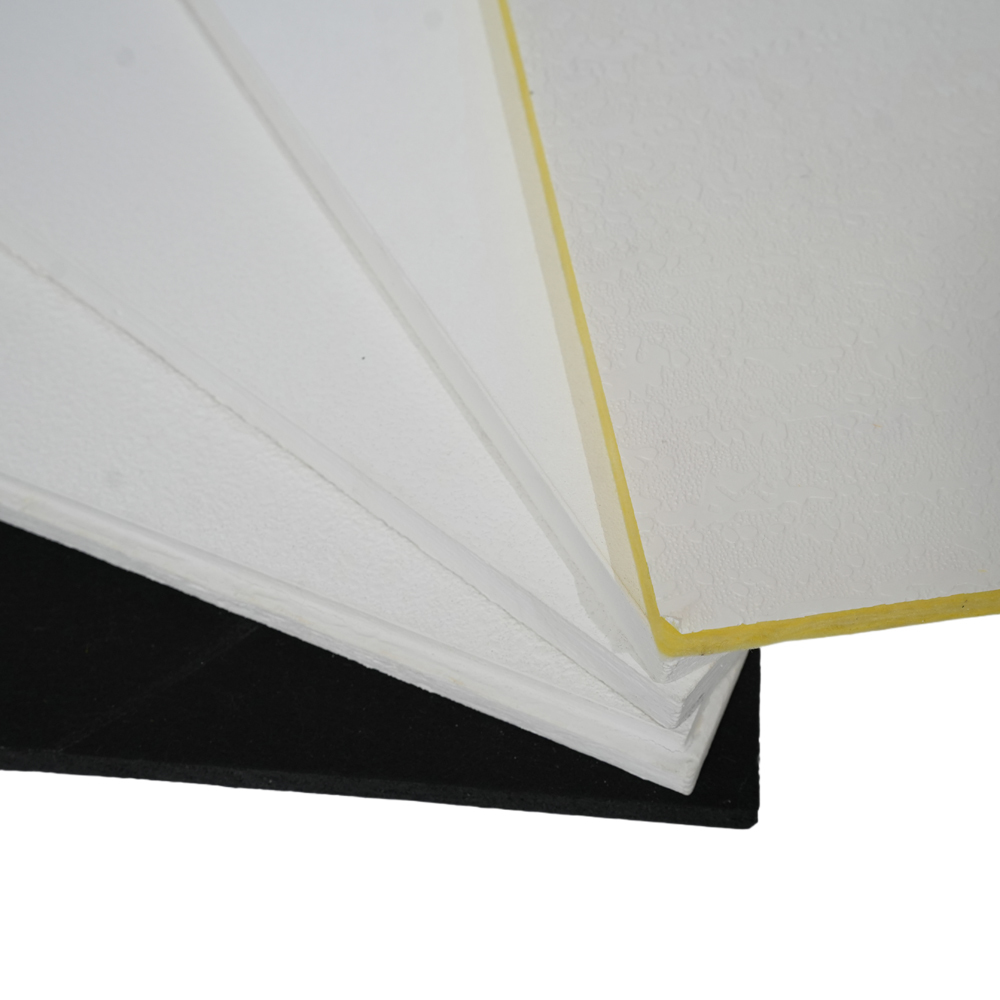

FANRYN Fiberglass Ceiling Board – Superior Sound Absorption for Quiet Spaces 4

etiqueta:

Lugar de origem:	China
Marca:	FANRYN

Detalhes da embalagem:	Saco plástico
Tempo de entrega:	15 dias de trabalho
Termos de pagamento:	T/T
