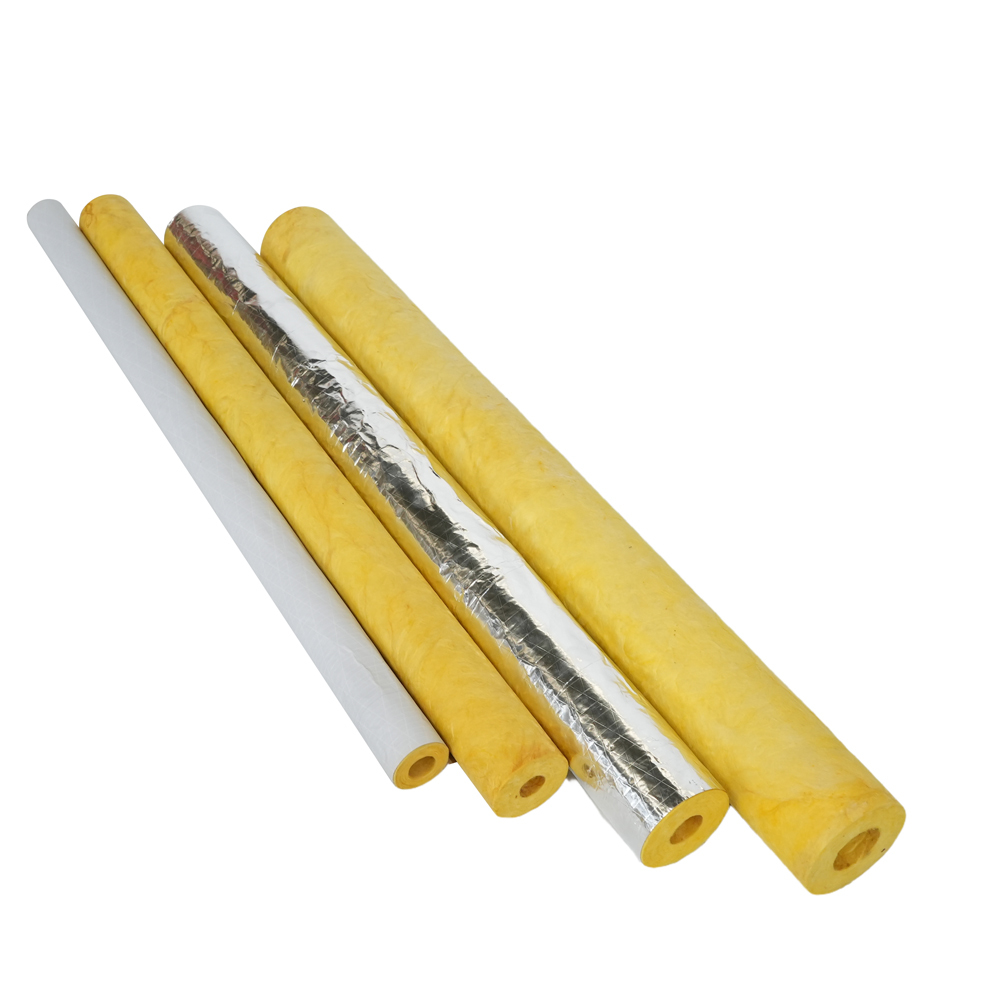

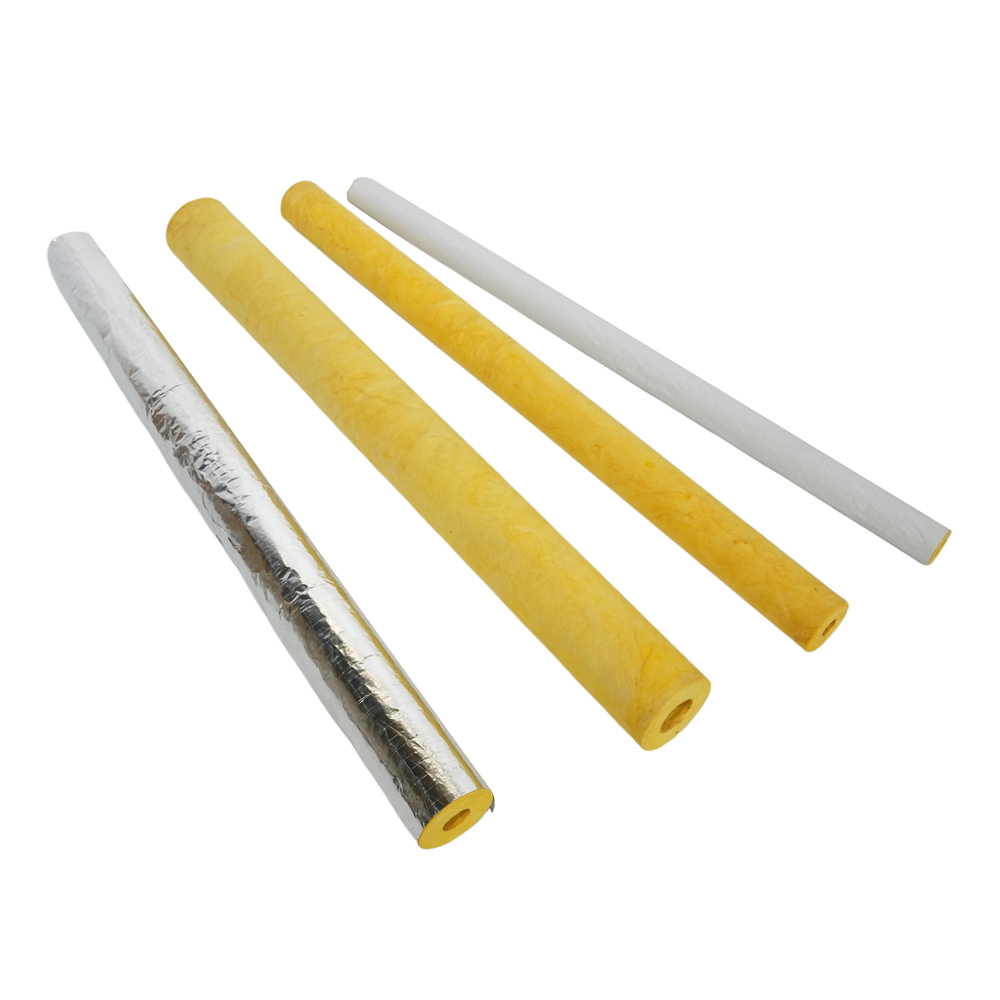

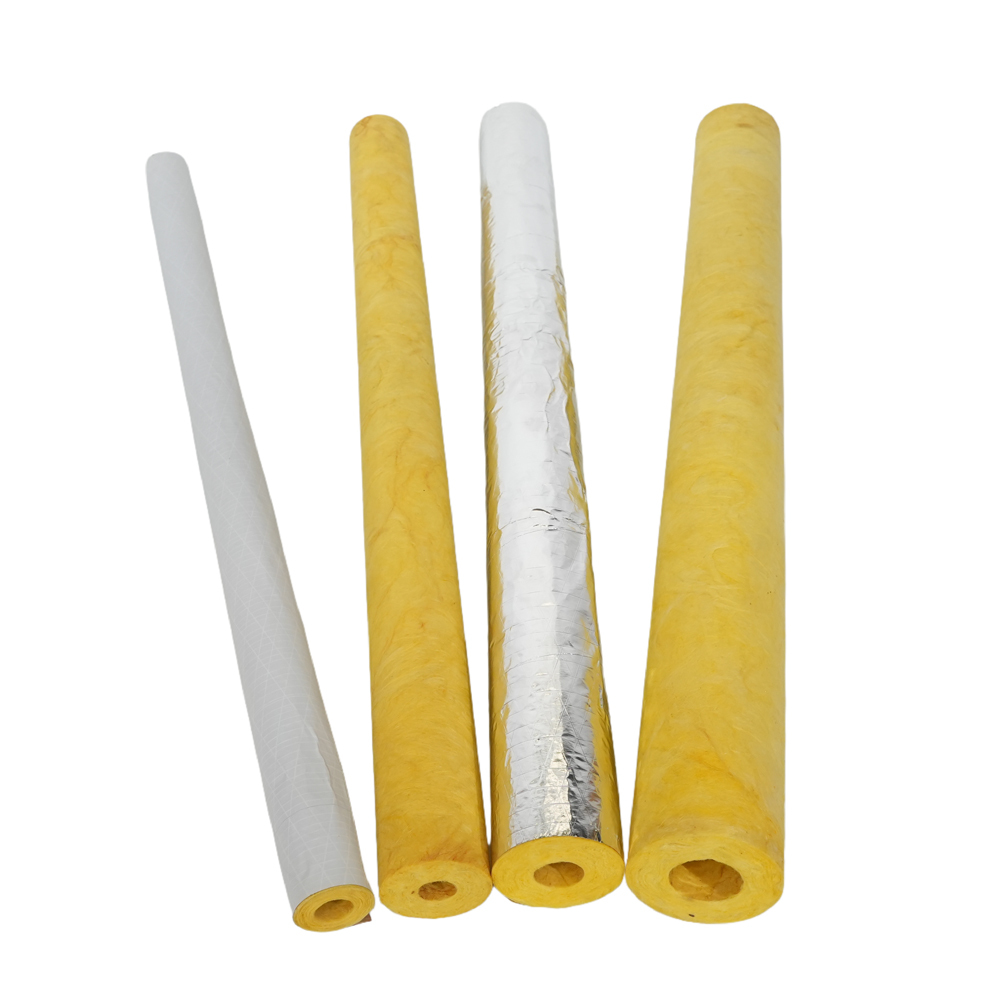

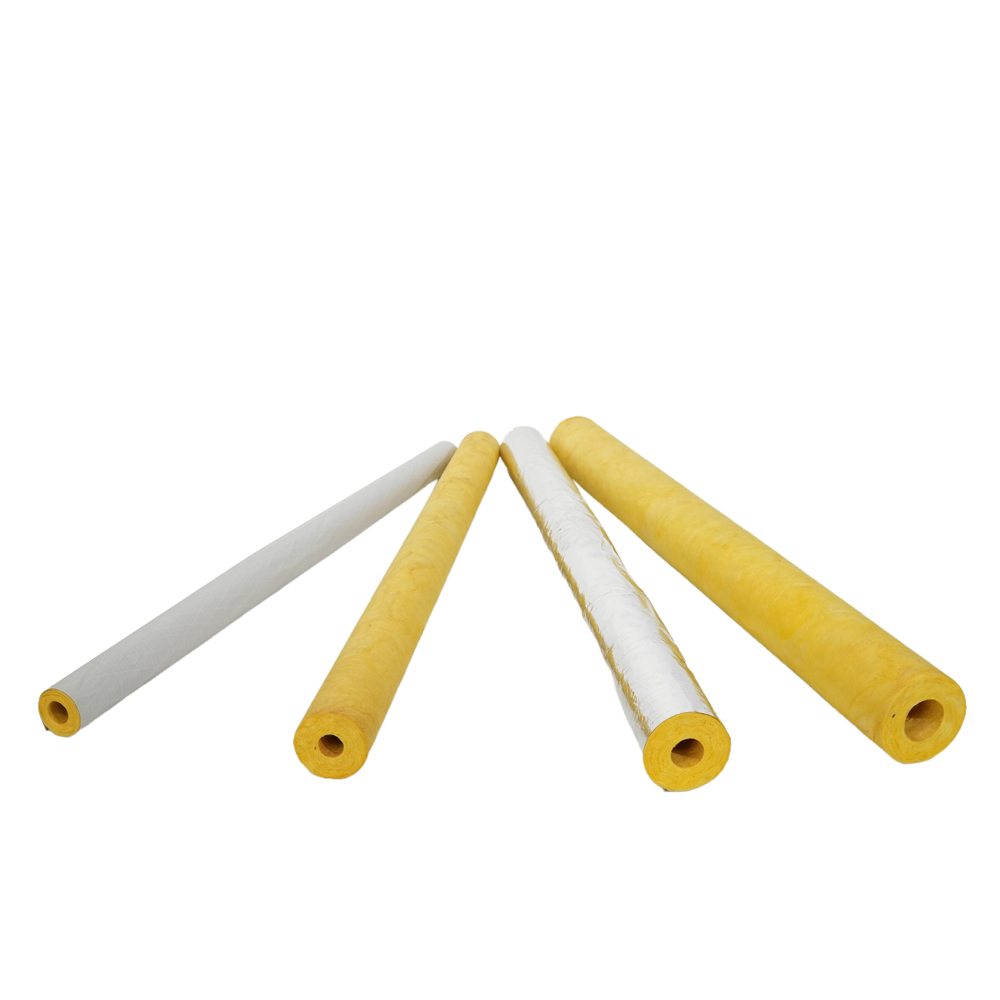

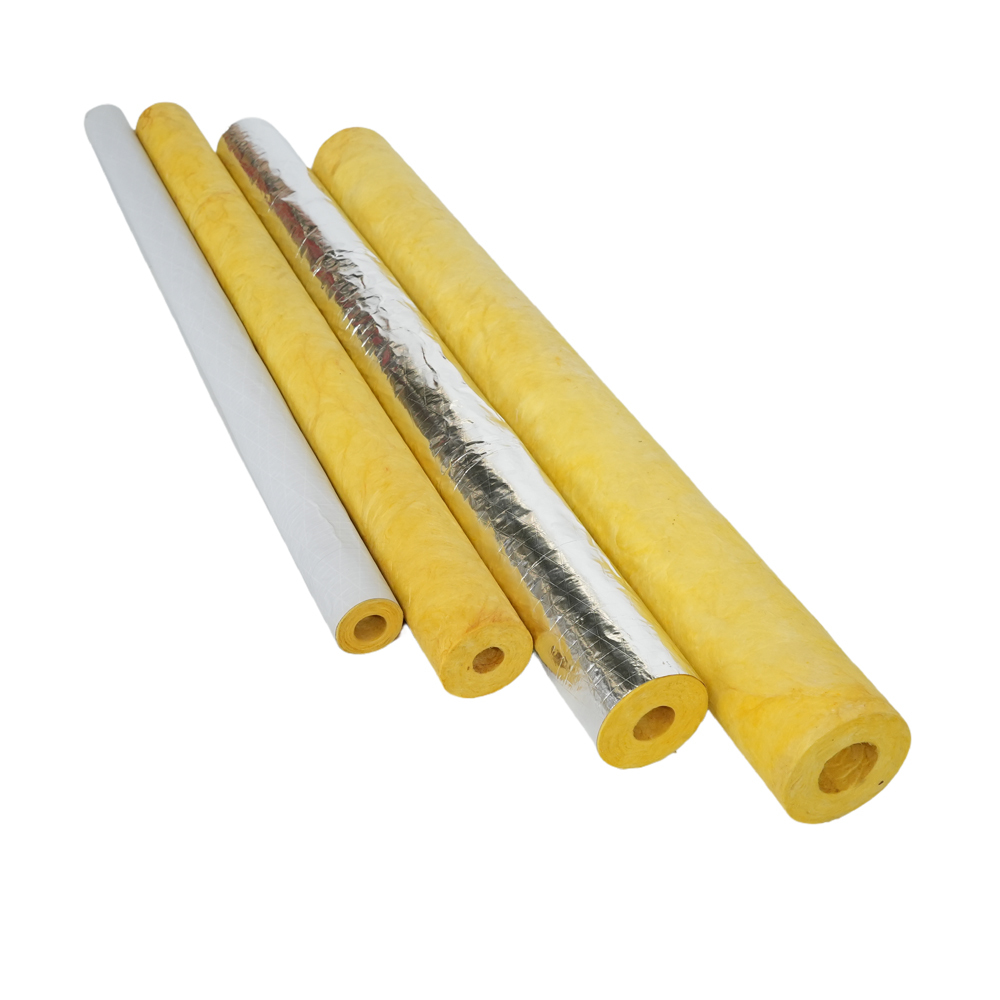

Product introduction of the glass wool pipe
Our pre-formed Glass Wool Pipe Sections are the go-to solution for quick and efficient insulation upgrades, repairs, and maintenance. The snap-on design allows for easy installation on existing pipelines without the need for complex tools or system shutdowns. Whether you're improving energy efficiency in an old building or insulating new branches in a plant, this product offers a cost-effective and straightforward solution that delivers immediate performance benefits.
Product parameter of the glass wool pipe
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) |
|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm |
|---|
Air System Steaming and Water System High Temperature/
High Pressure System | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/
Medium Pressure System | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/
low Pressure System | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment
Temperature | Relative Humidity | System Working Temperature |
|---|
2℃ | 7℃ | 13℃ |
|---|
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 |
80% | 75 | 60 | 50 |
85% | 100 | 90 | 75 |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 |
80% | 50 | 50 | 40 |
85% | 80 | 75 | 60 |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 |
85% | 75 | 65 | 50 |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 |
85% | 75 | 50 | 40 |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Product feature and application of the glass wool pipe
Easy Snap-On Fit: Simplifies installation over existing pipes, saving time and labor costs.
Pre-Formed Efficiency: Manufactured to precise dimensions for a perfect fit on standard pipe sizes.
Versatile Application: Suitable for a wide range of temperatures, from low-temperature cooling to medium-temperature heating.
Minimal Disruption: Ideal for maintenance work where downtime needs to be minimized.
Production Facing of rock wool board
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
