| Absorção de umidade: | ≤ 5% | Intervalo de temperatura: | -50°C a 650°C |
|---|---|---|---|
| Materiais: | Lãs minerais | Impacto ambiental: | Ecologicamente correto |
| Absorção sonora: | 0.9-1.0 | Estabilidade dimensional: | ≤1% |
| Resistência ao fogo: | Classe A | Densidade: | 50-200 Kg/m3 |
| Água Repellency: | Não-descascamento | Conductividade térmica: | 0.035-0.044 W/mK |
| Coeficiente da acidez: | 1.6 | ||
| Destacar: | External Wall Rock Wool Board,Insulation Material Rock Wool Wall Panel,Rock Wool Wall Panel 100mm |
||

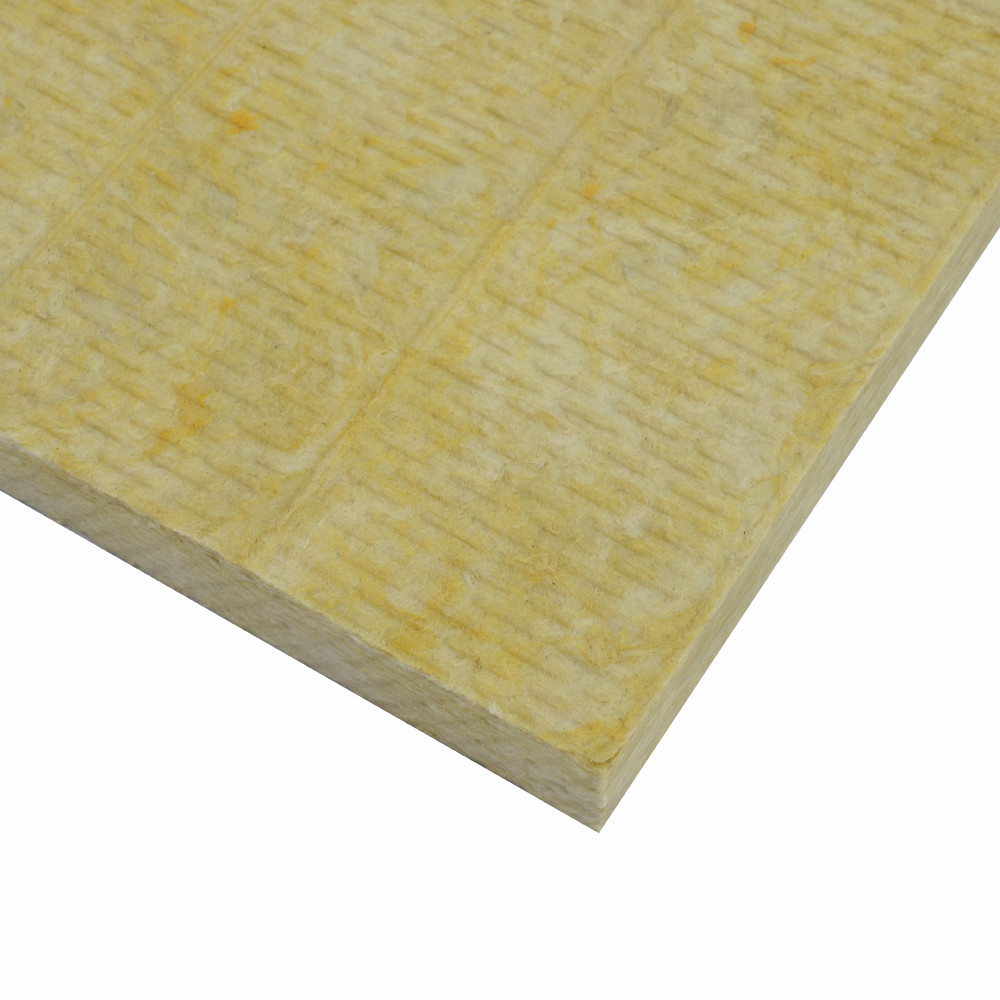

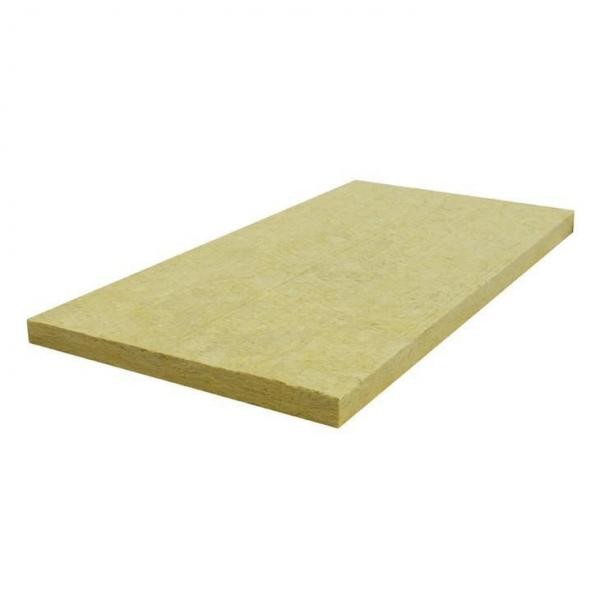

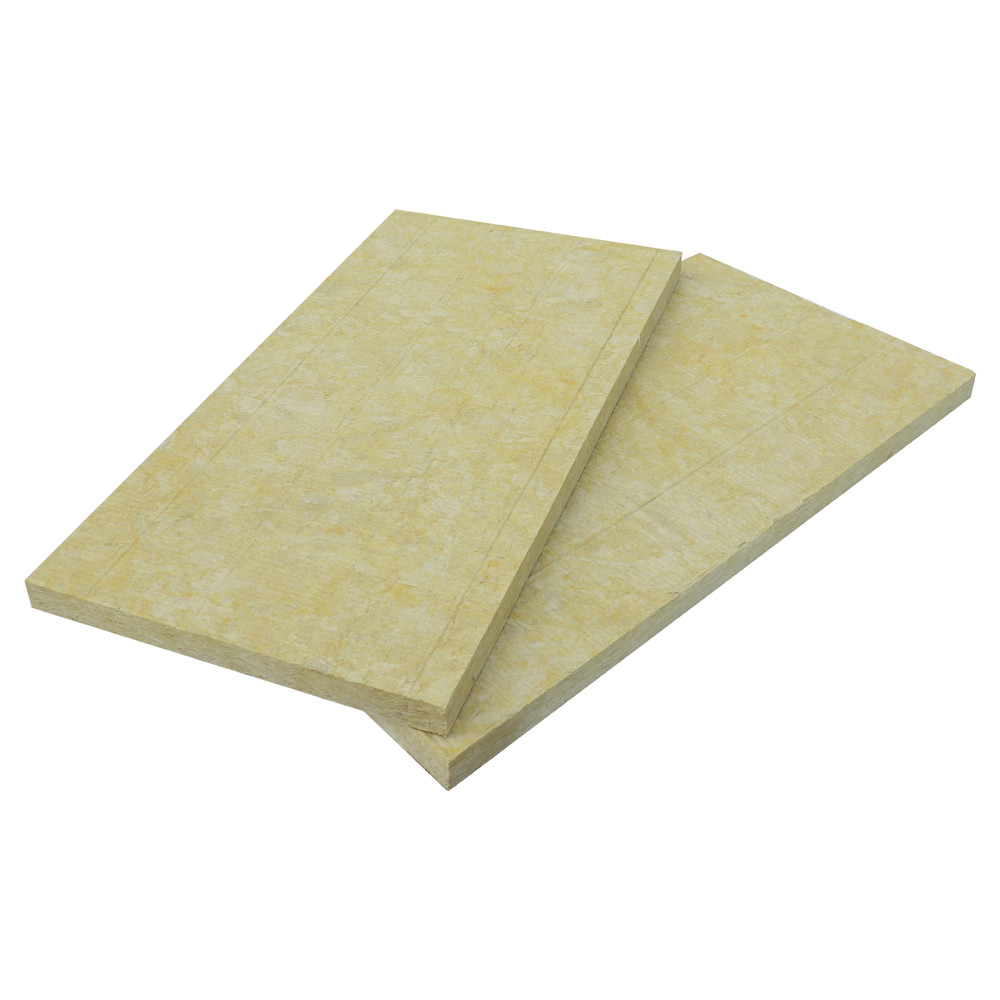

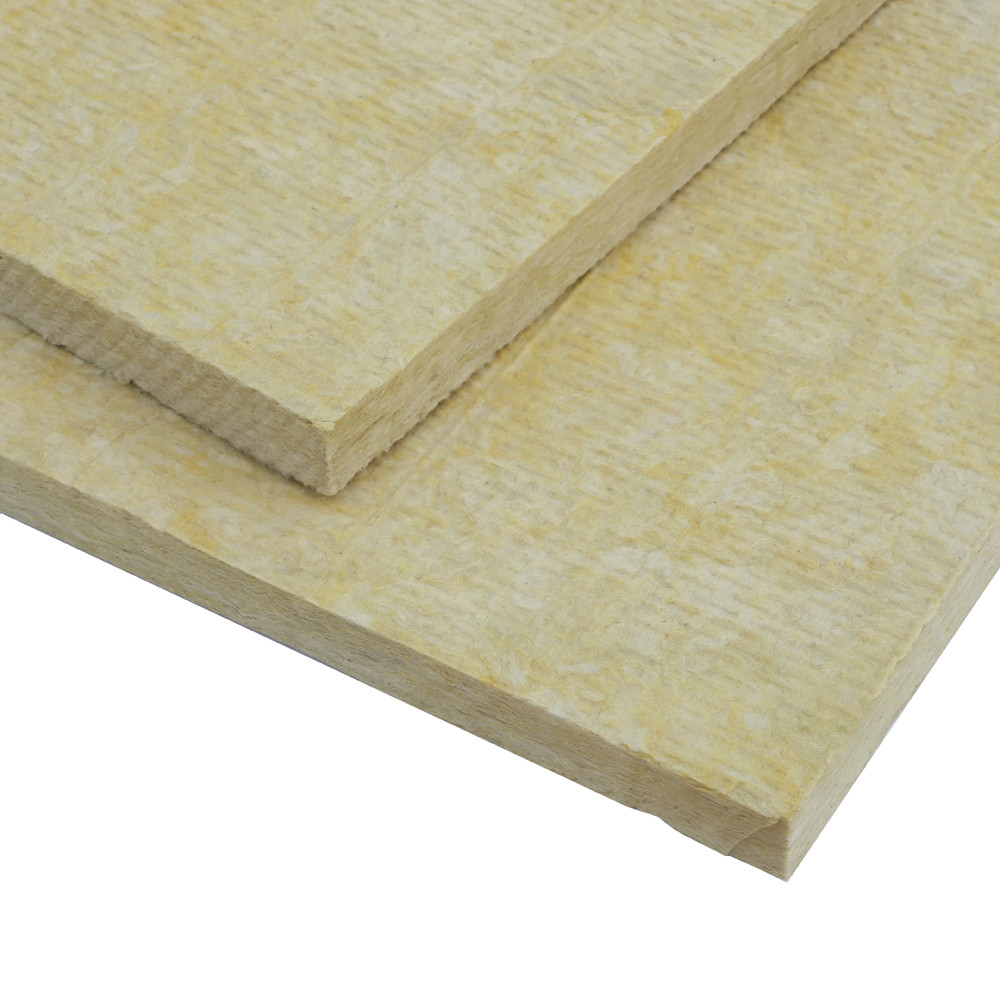

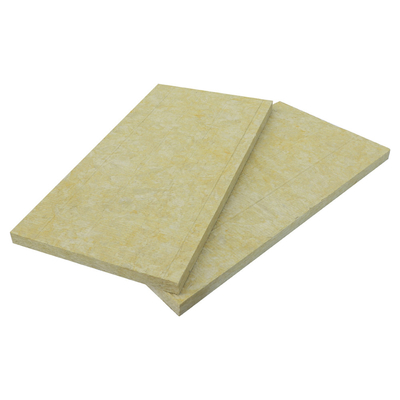

FANRYN Rock wool board is made from natural rocks such as basalt and limestone,
The rocks are melted in a cupola at temperature of >1450 °C, and the molten lava is
fiberized by a spinner. The inorganic fibers are bonded together using a thermosetting
resin to form the final product which is cut into suitable sizes for easy handling and
installation.
![]()
Product parameter of the Rock Wool Board
| Properties | Board | Standards |
| Density Tolerance | ±10% | GB/T 19686-2005 |
| Fire Performance | Non-Combustible | GB/T 5464-1999 |
| Reaction to fire Class A1 | GB/T 8624-2006 | |
|
Thermal Conductivity (W/mK, at70±5℃) |
≤0.044 | GB/T 10295 |
| Fiber Diameter | 7(+/-1)um | GB/T 5480. 4 |
|
Shot Content (shot size>0.25mm) |
≤12% | |
| Moisture Content | ≤0.5% | |
| Organic Matter Content | ≤4% | |
| Melting Point | >1000℃ |
Product size of the Rock Wool Board
| Product | Board |
| Density (kg/m3) | 40-200 |
| Size :L x W (mm) | 600X1200 |
| Thickness (mm) | 30-100 |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
